Flexible Hose

NK-VN1500

Male Threaded Both End Type

Welded Type

Download Sketch

※ Click the button below if you are interested in this product.

AddAdded to
Checklist

See
Checklist

※ On the Contact/Checklist page. You can check the selected product.

Use

Adjustment of Piping Misalignment
Absorption of Machine or Pump Vibration
Connection of Machine and Pipe
Prevention for Damage of Pipe and Equipment by Land Subsidence, Earthquake
This product is not used for purpose of torsion movement absorption.

Feature

Applicable tube: STD・SA(Soft)・CLT(Ultra Soft)
*Please select suitable tube according to usage conditions.
Size: 6A ~ 100A
Length: 200mm~10M
*Please contact us for length.

details

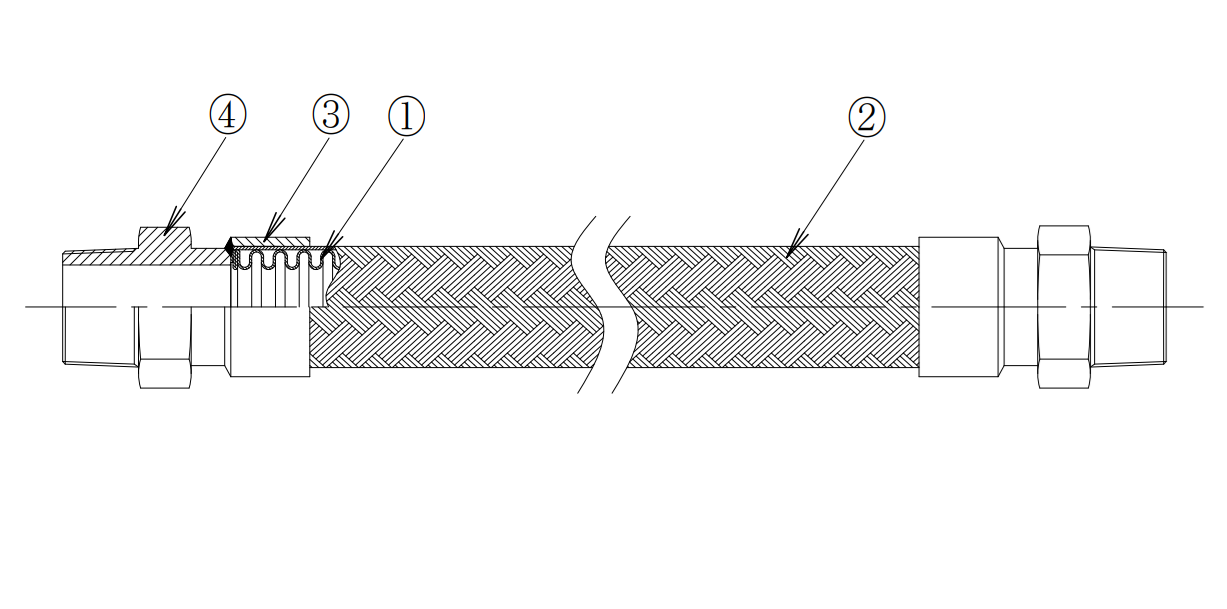

Materials

1. Tube	Stainless Steel
2. Braid	Stainless Steel
3. Ring	Stainless Steel
4. Nipple	Carbon steel, Stainless Steel

View Steel Types

Product Variation

1. Low pressure carbon steel fitting

– Nominal Dia: 6A~100A
– Applicable fluid: Water, Oil, Air, Steam
– Operating temperature:-10~200℃

*Without sealing material consideration.
– Operating Pressure 0.1~1.0MPa

* Please kindly contact us for consultation in case the design pressure is higher.

2. Low pressure Stainless steel fitting

– Nominal Dia: 6A~80A
– Applicable fluid: Water, Oil, Air, Steam, Chemical fluid
* Limited to fluids that do not corrode stainless steel.
– Operating temperature:-40~450℃

*Without sealing material consideration.
– Operating Pressure 0.1~1.0MPa

* Please kindly contact us for consultation in case the design pressure is higher.

3. High pressure carbon steel fitting

– Nominal Dia: 6A~80A
– Applicable fluid: Water, Oil, Air, Steam
– Operating temperature:-10~250℃

*Without sealing material consideration.
– Operating Pressure 0.1~2.0MPa

* Please kindly contact us for consultation in case the design pressure is higher.

4. High pressure stainless steel fitting

– Nominal Dia: 6A~50A
– Applicable fluid: Water, Oil, Air, Steam, Chemical fluid
* Limited to fluids that do not corrode stainless steel.
– Operating temperature:-40~450℃

*Without sealing material consideration.
– Operating Pressure 0.1~2.0MPa

* Please kindly contact us for consultation in case the design pressure is higher.

* Please select suitable fittings material according to usage conditions.

Option

Spring Guard [GS]

This spring gives more allowable bending radius and reduces the external bending stress.
ex.)NK-VN1500GS

Insulating Jackets/Glass cloth [GB]

This cover is made of glass fiber. It prevent heats from outside and inside.
ex.)NK-VN1500GB

Insulating Jackets/Aero flexs® [AF]

This coating prevent dew condensation of hoses.
ex.)NK-VN1500AF

Underground Processing [UG]

Carbon steel is coated by tar epoxy coating for corrosion-resistant, and braided hose is covered by the tapes not to enter foreign material between the carriers.
ex.)NK-VN1500UG
